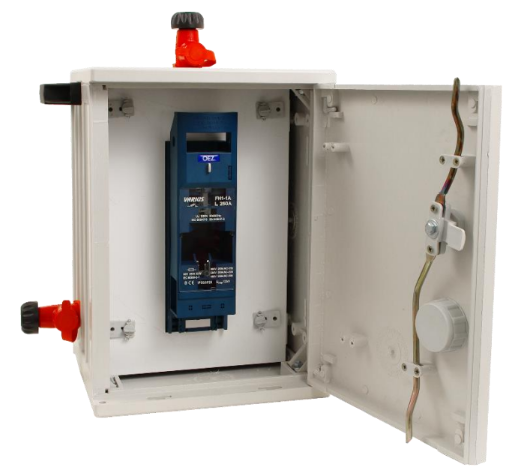

PRB-1F (1x1) Switchgear for single-phase, Portable Shunt, 250 A
Information
Product code:
D112.0901
Producer:
-
Unit of measure:
pcs
VAT:
23%
Product prices and additional information
visible after registration and logging in
Login / registration
visible after registration and logging in
The switchboard with cables forms a bypass switch used during live work at alternating voltage up to 500 V in distribution equipment.
The bypass switch is designed to bypass sections of electrical circuits intended for disassembly, replacement, or repair while maintaining current continuity in the circuits.
The switchboard is intended for use with a single-phase, portable bypass switch rated at 250 A.
Parameter
Value
Rated operational current
200 A
Rated operational voltage
690 V AC/ 250 V DC
Rated insulation voltage
500 V/ DC
Rated impulse withstand voltage
8 kV
Short- ime withstand current
6 kA/ 0,5 s
Maximum fuse link
250 A
Size of fuse link
NH 1
Weight (without fuse- cartridge and insulated connecting conductors)
9 kg
Permissible ambient temperature
(-25 ÷ +55) °C
Mechznical durability
1400 cycles
Connection cable set (standard)
D112.2006 2pcs
Standard
PN-EN 61439-4:2013-06, PN-EN 61439-1:2021-10
